Application:

To be used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, subways and public facilities

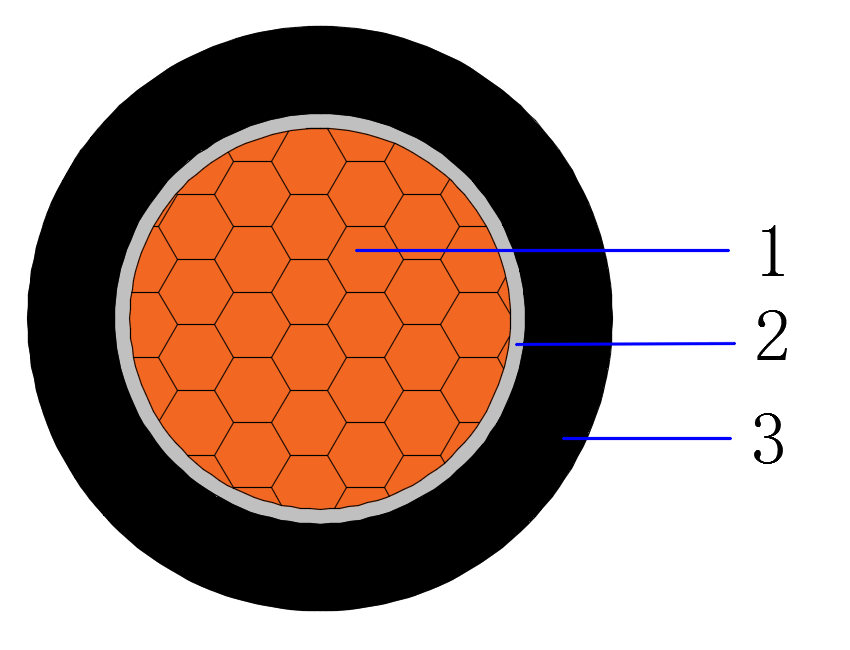

Construction:

1. Conductor - Plain annealed class 2 stranded (compacted) copper

2. Fire Resistant layer - Mica Tape

3. Insulation - Low smoke halogen-free (LSZH)

Cross Section:

1 core: 1.5~6mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Black or according to customer requirements

Standard:

Cable design: IEC 60502-1

Conductor: IEC 60228

Fire resistant : BS6387 C
