Application:

Solar cables applies to flexible single-core cables (cords) for use at the DC-side of photovoltaic systems with a maximum permissible voltage of DC 1.8 kV (conductor/conductor, non-earthed system).The cables are suitable for use in safety class II. It is permitted to connect these cables as multiple-construction. The cables are intended to operate at ambient temperature until 90¡ãC

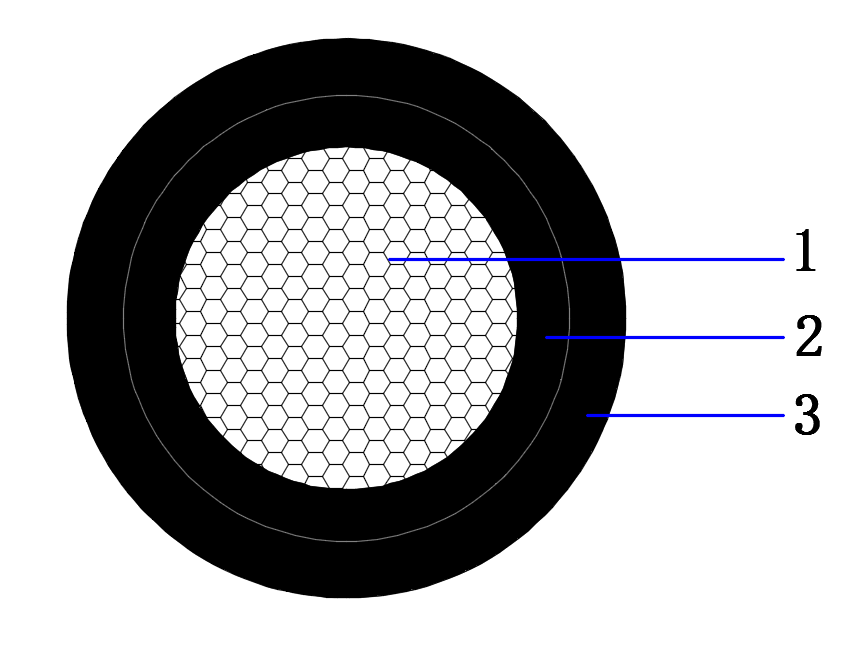

Construction:

1. Conductor - Class 5 tinned annealed stranded copper conductor

2. Insulation - Low smoke halogen-free electron-beam cross-linked compounds (XLPO)

3. Outer sheath - Low smoke halogen-free electron-beam cross-linked compounds(XLPO)

Cross Section:

1 core: 1.5~35mm2

Temperature characteristics:

Working temperature: -40℃~90℃

Max. temperature at conductor: 120℃

Short Circuit temperature: 200℃ (at max.5sec)

Electrical Characteristics:

Rated Voltage:

AC U0/U:0.6/1kV

DC Max. : 1800V (conductor/conductor, non-earthed system)

Spark Test Voltage: 6000 V AC

5min Test Voltage: 6500V

Chemical Features:

Weather / UV Resistance

Resistance mineral oil

Color:

Insulation: Black or White or as customer¡¯s requirement

Outer sheath: Red or Black or as customer¡¯s requirement

Standard:

TUV 2PfG 1169

IEC60228, IEC60332

EN50305, EN50395, EN50396
