Application:

To be used for main power supply such as in low voltage distribution power networks, indoor and outdoor areas. It can be installed in ducts, in dry or wet locations, recommended for direct burial where require higher electrical and mechanical protection.

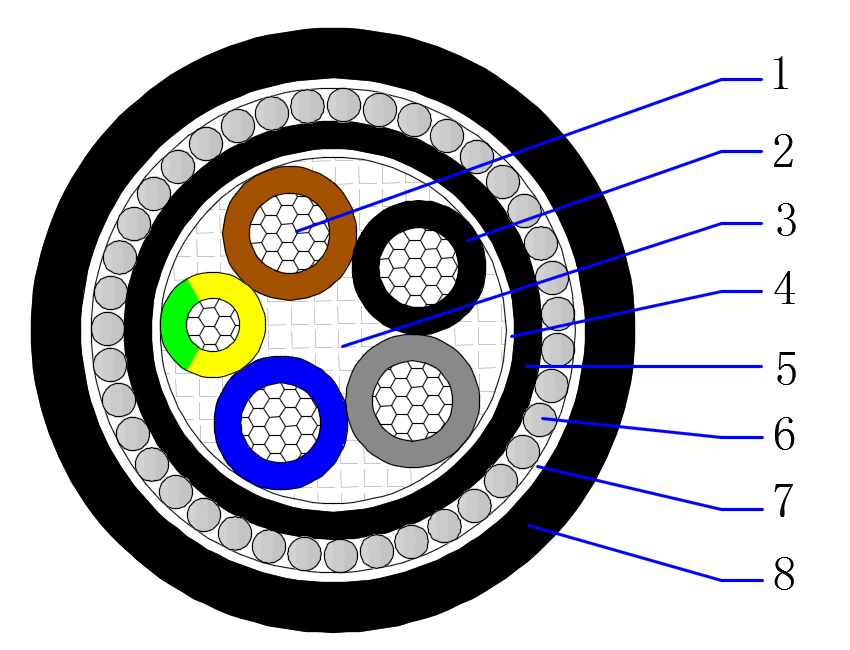

Construction:
1. Conductor - Class 2 stranded (compacted) aluminum
2. Insulation - Cross linked polyethylene (XLPE)
3. Filler - Non-hygroscopic material
4. Binder tape - Non-hygroscopic material tape
5. Inner sheath - Polyvinyl chloride compound (PVC)
6. Armor - Galvanized steel wires
7. Binder tape - Non-hygroscopic material tape
8. Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section:

2C1.5~2C400mm2

3C1.5~3C400mm2

4C1.5~4C400mm2

5C1.5~5C400mm2

2C+E2.5~2C+E400mm2

3C+E2.5~3C+E400mm2

4C+E2.5~4C+E400mm2

Temperature characteristics:

Conductor operating temperature: -15℃~90℃

Min. temperatrue laying condition: 0℃

Conductor emergency operating temperature: 105℃

Conductor short-circuit operating temperature (5s): 250℃

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: According to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
