Application:

To be used for electrical equipment and station control circuits, where require electrostatic shielding and higher mechanical protection.

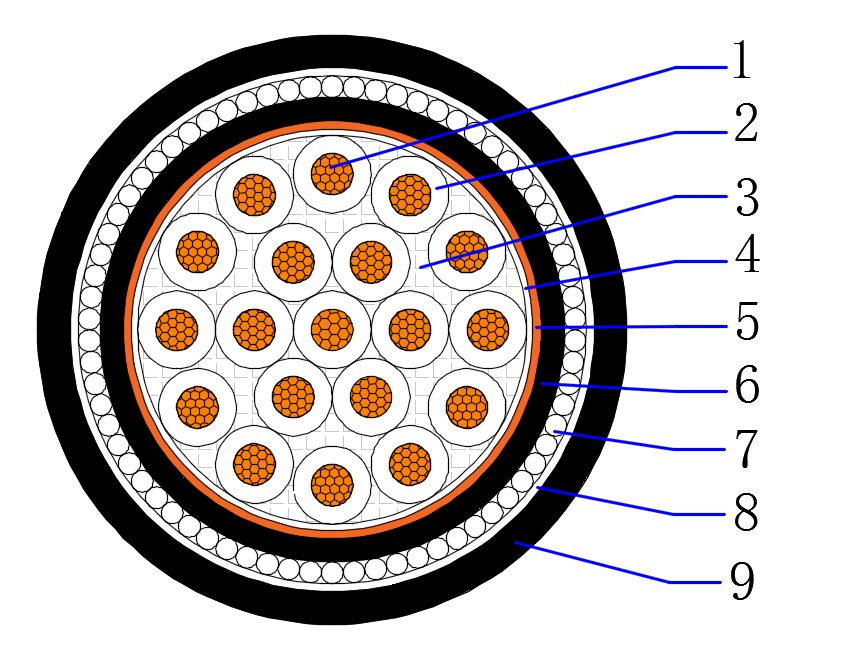

Construction:

1. Conductor - Plain annealed class 2 stranded (compacted) or class 5 flexible copper

2. Insulation - Polyvinyl chloride compound (PVC)

3. Filler - Non-hygroscopic material (if necessary)

4. Binder tape - Non-hygroscopic material tape

5. Screen - Plain annealed copper tape

6. Inner sheath - Polyvinyl chloride compound (PVC)

7. Armor - Galvanized steel wires

8. Binder tape - Non-hygroscopic material tape

9. Outer sheath - Polyvinyl chloride compound (PVC)

Cross Section:

2~61 core, 0.5~4mm2

Temperature characteristics:

Conductor operating temperature: -15℃~70℃

Min. temperatrue laying condition: 0℃

Conductor short-circuit operating temperature (5s): 160℃(≤300mm2) 140℃(>300mm2)

Electrical Characteristics:

Rated voltage: 0.6/1 (1.2) kV

High voltage test: 3.5kV / 5min

Color:

Insulation: White core with black number or according to customer requirements

Outer sheath: Black or according to customer requirements

Standard:

Cable design: IEC 60502-1 or AS/ZNS 5000.1

Conductor: IEC 60228 or AS/ZNS 1125
